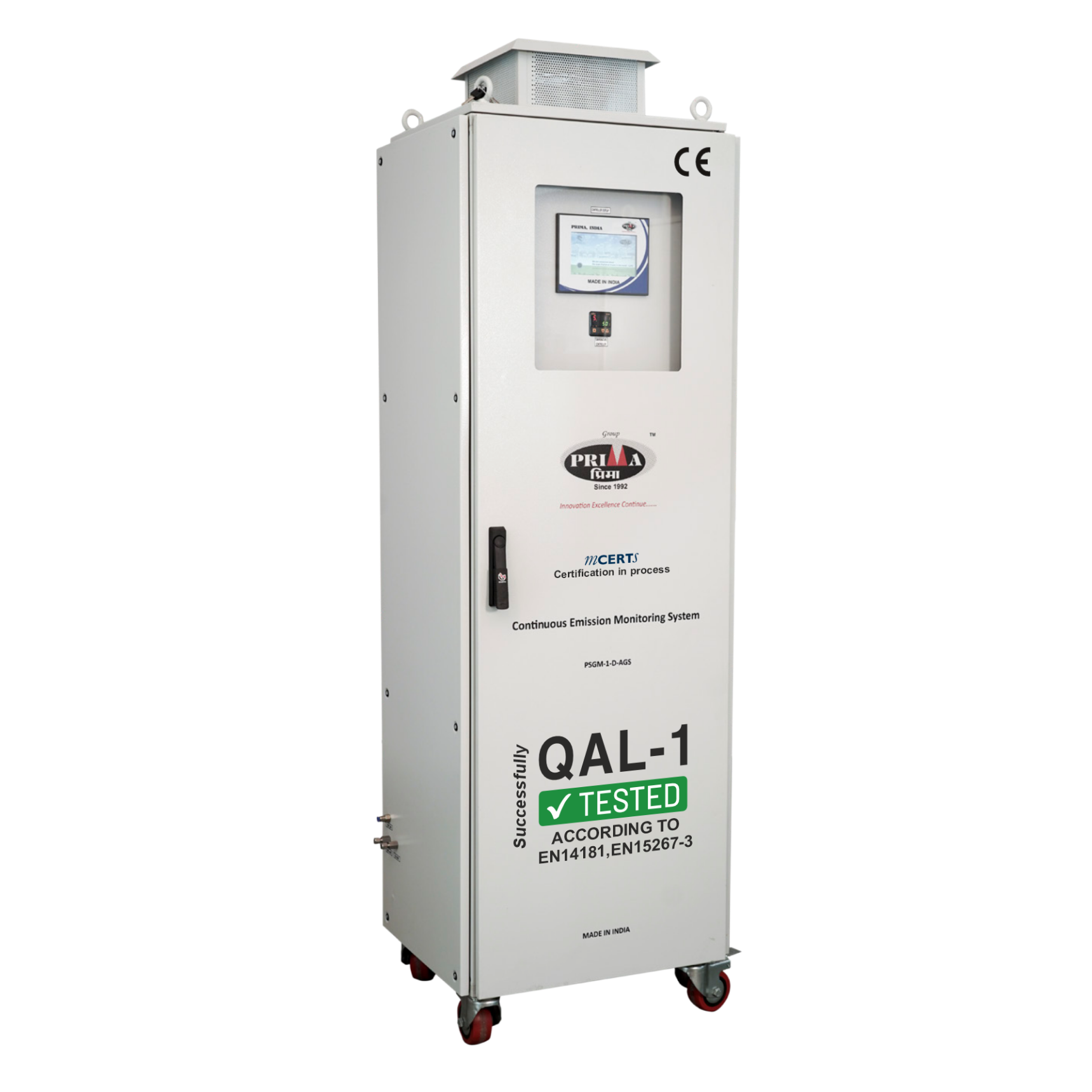

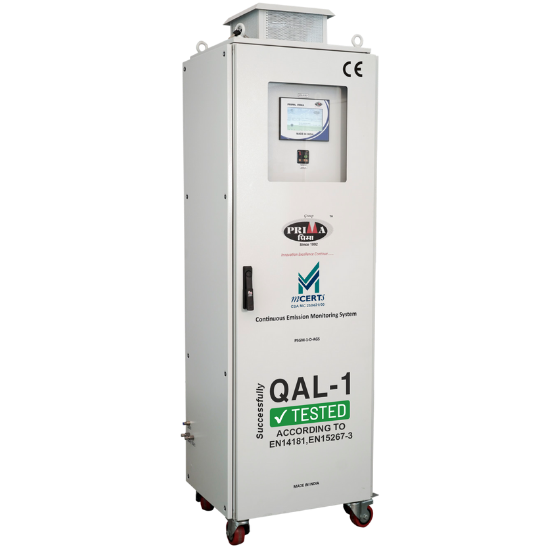

Standard Enclosure
Size: 600mm × 1800mm × 500mm
*Terms and Conditions Applied:
- PRIMA will only measure combustion efficiency of single boiler and give report for FREE.
- If multiple boilers present at the company, except the first one all others will be chargeable.
- All Travelling and Lodging expenses to be born by the customer
*Terms and Conditions Applied:
- PRIMA will only measure combustion efficiency of single boiler and give report for FREE.
- If multiple boilers present at the company, except the first one all others will be chargeable.
- All Travelling and Lodging expenses to be born by the customer
Home > products > Continuous Stack Gas Emission Monitoring System
PSGM-1-D-AGS
PSGM-1-D-AGS Continuous Emissions Monitoring System (CEMS) can monitor gases, including SO2, NO2, O2, dust, humidity, temperature, pressure, flow parameters, etc. It can be widely used in all kinds of component continuous monitoring situations such as boilers, industrial furnaces, incinerator emissions, etc.
In addition, PSGM-1-D-AGS also can monitor gases for a process vent such as HCL, HF, CO2, CO, NH3, H2S, CL2, VOC etc. PRIMA is the only high and new technology Indian company with a full set of intellectual property rights of flue gas monitoring. Its independent research and development products include the flue gas analyser, temperature, pressure flow, humidity meter, HCI analyser, HF analyser, pre-treatment system, monitoring software, etc.
India’s only system with performance tested as per DIN EN 15267-3 (QAL-1) standard by ISO/IEC 17025:2017 Accredited Testing & Calibration Laboratory by IAS, U.S.A.
Features...
Two stages of condensation to remove water and cool down rapidly.
The system has been designed in-house considering Dust,Temperature and Humidity conditions of INDIA.
Electronic with conformal coating as per EN & G3 standard compliance to avoid atmospheric effects in harsh atmosphere.
High reliability with many stages of water and dust removal.
Indigenous researched and developed core devices and algorithms.
Manual, Automatic & Remote calibration facilities.
Adopts the most advanced on-line analysis technology and has high accuracy.
Stack gas sampling probe for customized flue gas application.
Sample handling System, Gas Pre-treatment (AGCSD - Auto Gas conditioning Device).
High Temperature Gas Sampling Probe Suitable for Safe and Flameproof Zone-2 Area.
Measurement data output options are Analog 4-20mA, RS485 MODBUS RTU, TCP/IP etc.
Technical Specifications..
Parameters...
| Measuring Principle | Parameters | Range | Resolution | |
| NDUV Technology (Non-Dispersive Ultraviolet) | SO2
NO NO2 NOX (Derived) | 0-1000 ppm
0-2000 ppm 0-1000 ppm 0-2000 ppm | 1 ppm 1 ppm 1 ppm 1 ppm | |
| NDIR Technology (Non-Dispersive Infrared) | CO CO2 SO2 NO NOx CH4 | 0-2000 ppm | 2% 0-50 % 0-1000 ppm 0-1000 ppm 0-1000 ppm 0-5 % | 1 ppm | 0.001% 0.01% 1 ppm 1 ppm 1 ppm 0.01% | |
| UVDOAS Ultraviolet Differential Optical Absorption Spectroscopy IR DOAS Infrared Differential Optical Absorption Spectroscopy Technology | SO2
NO NO2 NOX (Derived) CL2 CS2 CH2O | 0-2000 ppm
0-2000 ppm 0-1000 ppm 0-2000 ppm 0-200 ppm Above 0-50 ppm 0-50 ppm | 1 ppm 1 ppm 1 ppm 1 ppm 1 ppm 1 ppm 0.1 ppm | |
| FTIR Technology Fourier Transformed Infrared | CO CO2 SO2 NO NO2 NOX (Derived) Total Fluoride HCL HF H2S VOC H2O | 0-2000 ppm 0-2000 ppm 0-50-100 ppm Above 0-10 ppm Above 0-50 ppm Above 0-50 ppm 0-25 mg/m3 0-100 ppm 0-20 ppm 0-200 ppm 0-2000 ppm | 0-5000 ppm 0-100% Vol | 1 ppm 1 ppm 0.1 ppm 0.1 ppm 0.1 ppm 0.1 ppm 0.1 mg/m3 1 ppm 0.01 ppm 1 ppm 1 ppm 1% vol | |
| PID Technology Photoionization Detectors | VOC | 0-2000 | 0-5000 ppm | 1 ppm | |
| FID Technology Flame Ionization Detector | TOC | 0-10 | 100 ppm | 0.1 ppm | |
| EC Technology Electrochemical Technology | SO2
NO NO2 CO O2 HCL HCN HF H2S NH3 ETO CL2 COCL2 | 0-2000 | 0-20,000 ppm 0-2000 ppm 0-2000 ppm 0-2000 ppm 0 -25% Vol 0-200 ppm 0-100 ppm 0-20 ppm 0-200 ppm 0-100 ppm 0-500 ppm 0-200 ppm 0-10 ppm | 1 ppm 1 ppm 1 ppm 1 ppm 0.1 % 1 ppm 0.1 ppm 0.01 ppm 1 ppm 0.1 ppm 1 ppm 1 ppm 1 ppm | |
| TDLAS Technology Tunable Diode Laser Absorption Spectroscopy | CO
CO2 H2O H2S HCL HF NH3 | 0-100 ppm , 0-100% Vol 0-200 ppm, 0-100% Vol 0-30 ppm, 0-100% Vol 0-200 ppm, 0-30% Vol 0-100 ppm, 0-50% Vol 0-20 ppm, 0-50% Vol 0-10 ppm, 0-100% Vol | 1 ppm , 1% Vol 1 ppm , 1% Vol 0.1 ppm , 1% Vol 1 ppm , 0.1% Vol 1 ppm , 0.1% Vol 0.01 ppm, 0.1% Vol 0.1 ppm, 1% Vol | |
| Zirconia Dioxide | O2 | 0 - 25% | 0.1% | |
| Thermal resistance and thermocouple | Temperature | 0 - 1200°C (customizable) | 1°C | |
| Pressure Sensor | Pressure | -10kPa to +10kPa (customizable) | 0.1kPa | |
| Pitot tube | Velocity/ Flow | 0 - 40m/s (customizable) | 1m/s | |
| Humidity capacitance method | Humidity | 0 - 40% | 0.1% |
Variants...
1) Standard IP55 as per IEC 60529:2001, Color RAL-7035, Powder Coating 100-120 micron
2) IS/IEC 60079-2:2014-Ex-p Z-Type Purge Control Panel suitable for Zone-2 & Zone-1, Gas Group IIA, IIB & IIC for flammable area application
3) IEC 60529 Type Non-corrosive, non-conductive, Suitable for extreme temperature, Water & Dust proof, IP 66 level certified, Ultra guard fiberglass material construction, UV stabilized for outdoor use

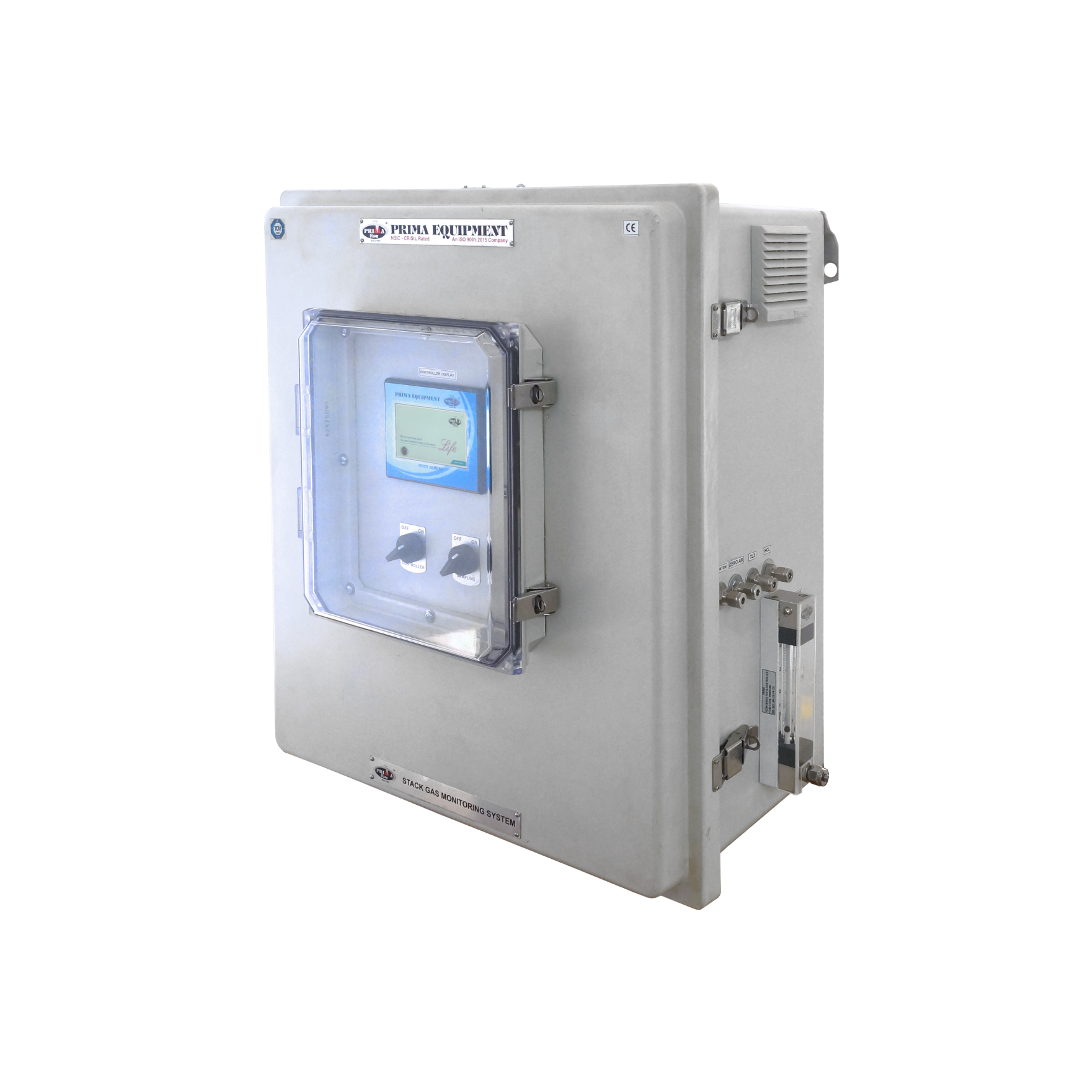

FRP Enclosure
Size: 650mm × 548mm × 301mm

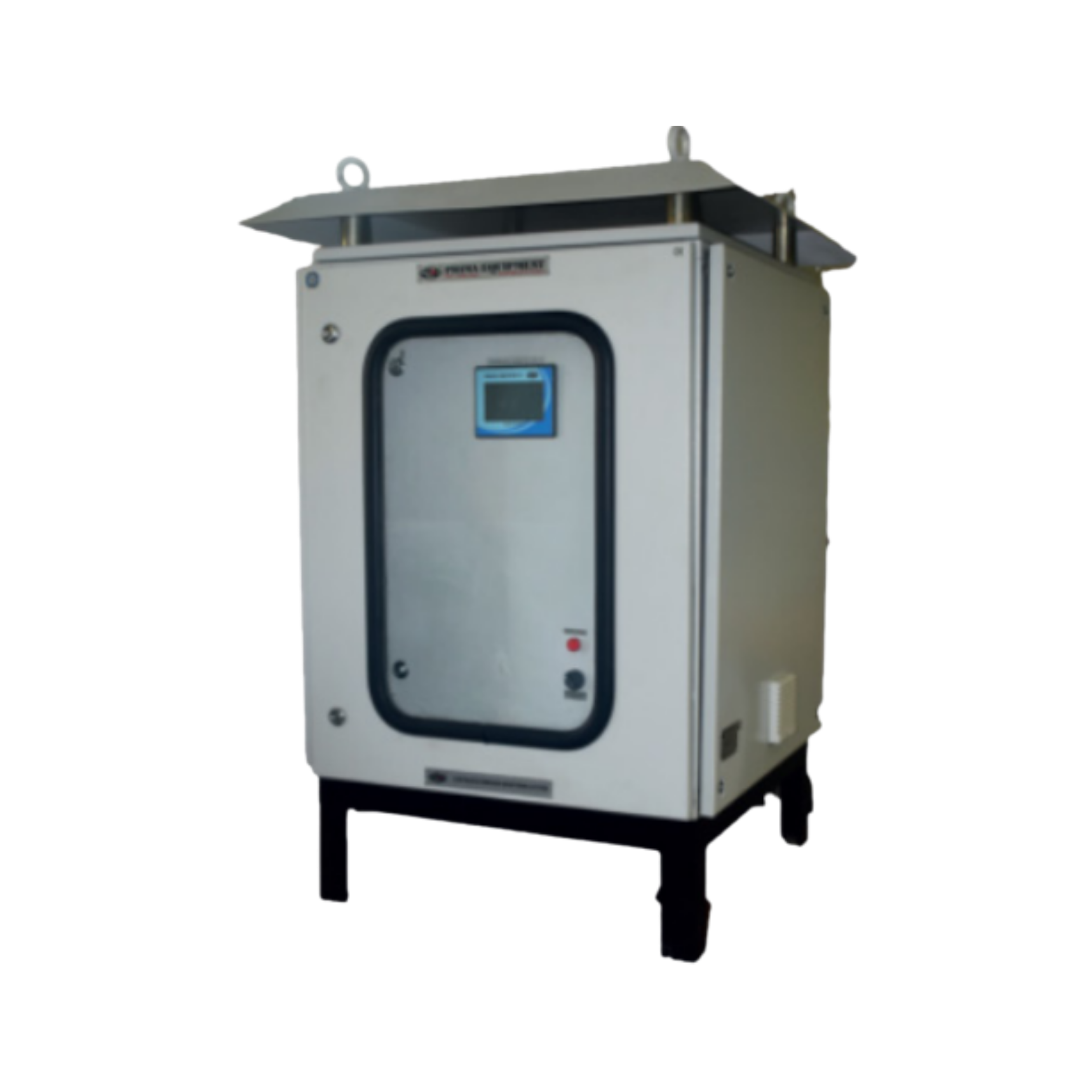

Mini PSGM
Size: 600mm x 600mm x 750mm

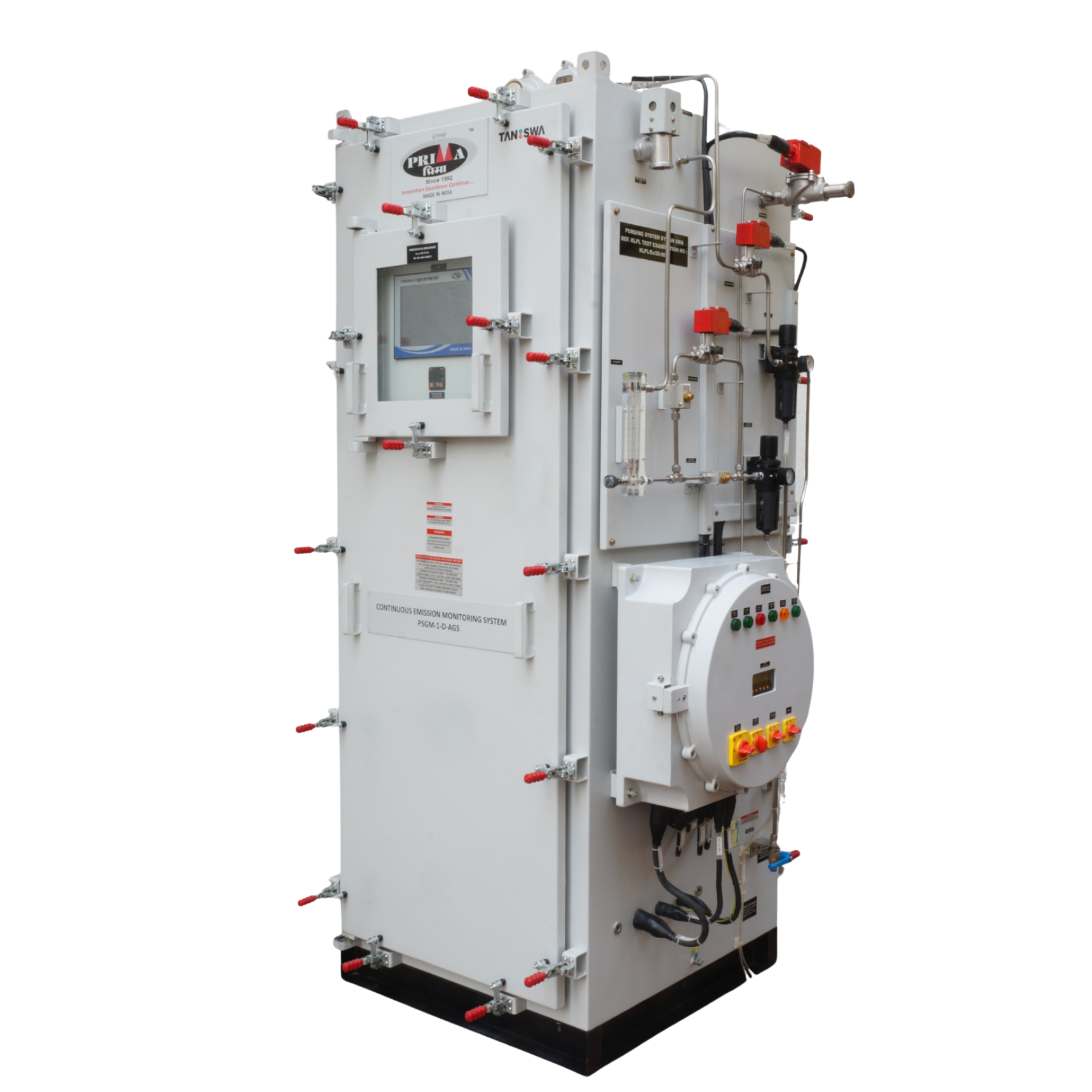

Purge Panel
Size: 800 x (2000+100) x 800 mm

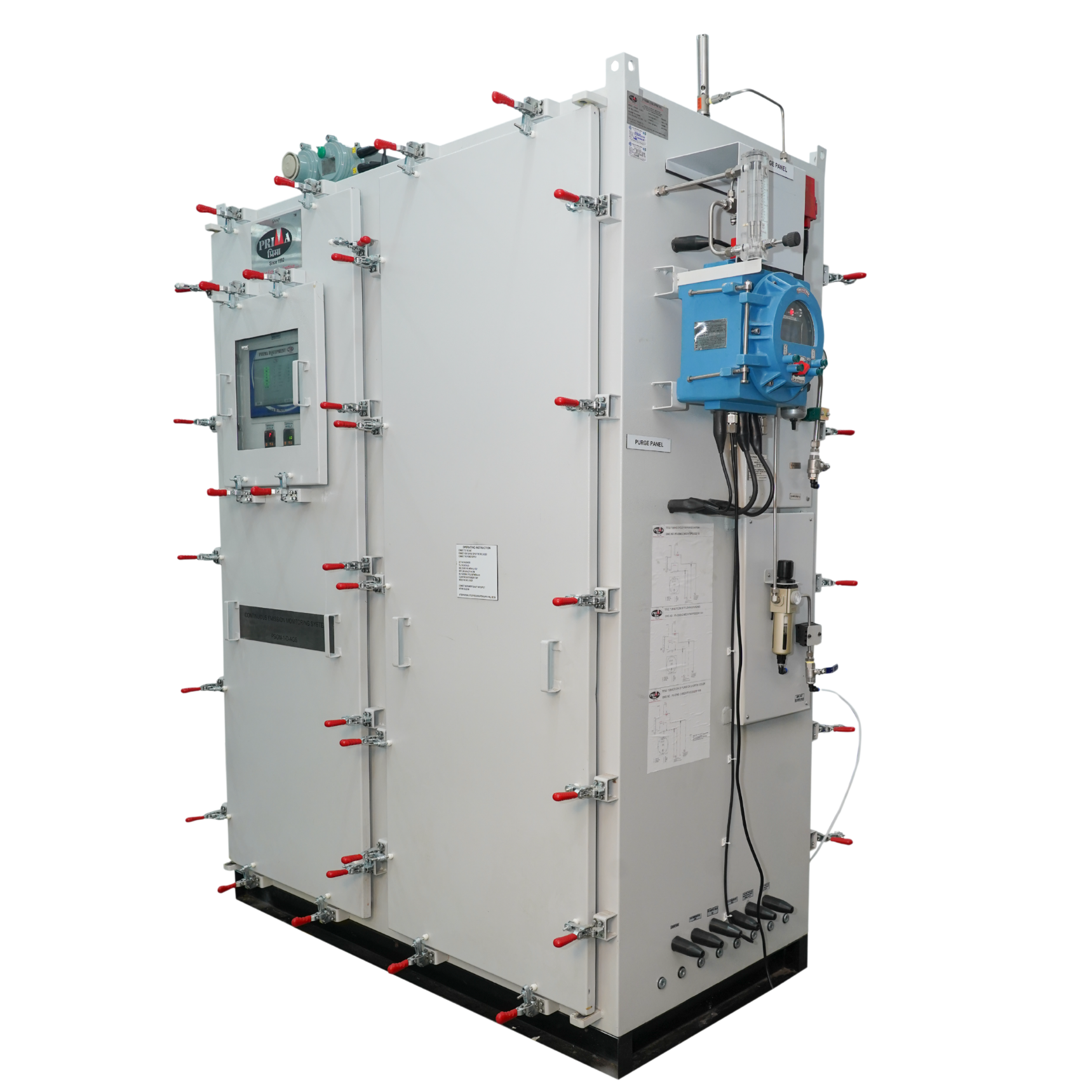

Double Door Purge
Size: 1600 x (2000+100) x 800 mm
