Home > products > Toxic Gas Analyzer

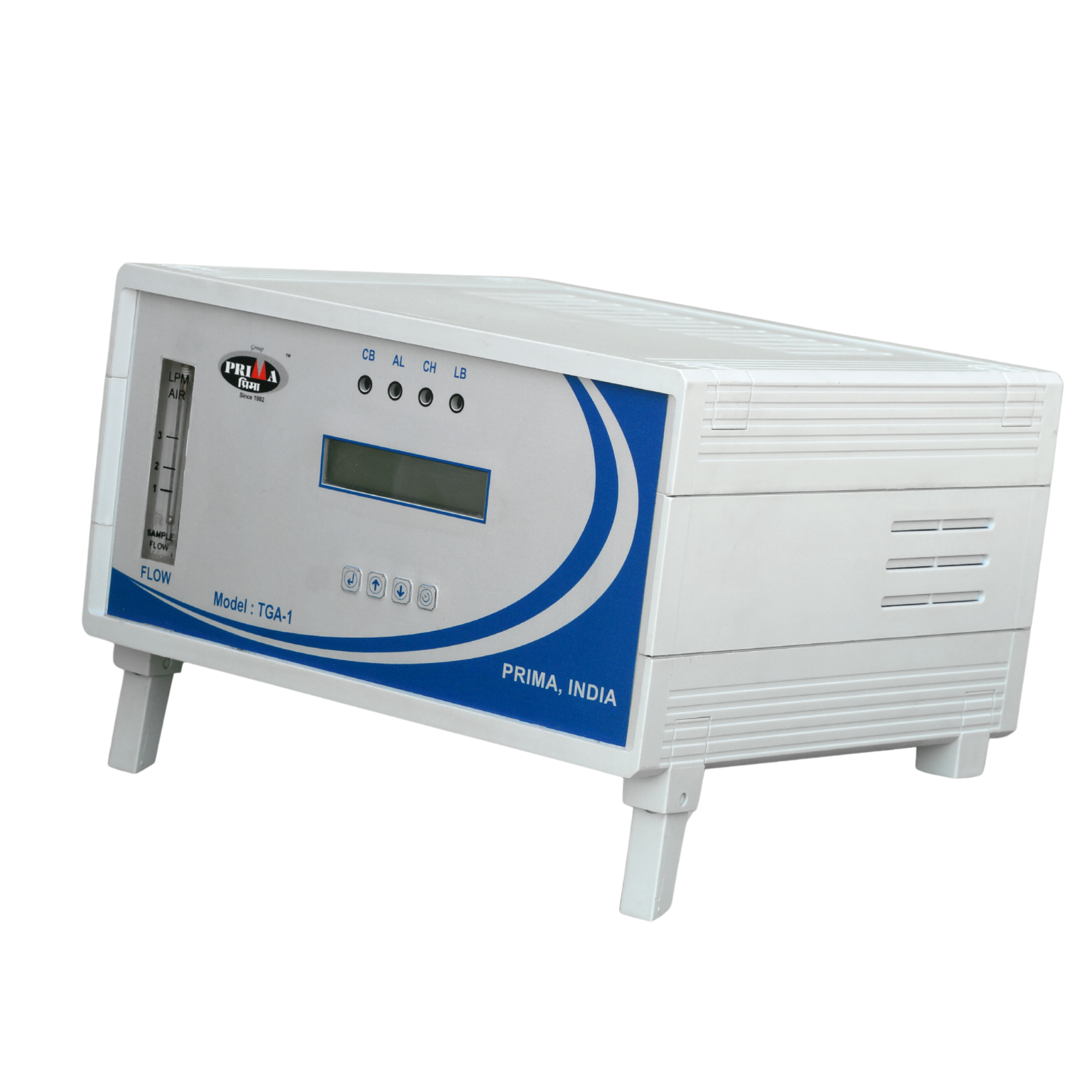

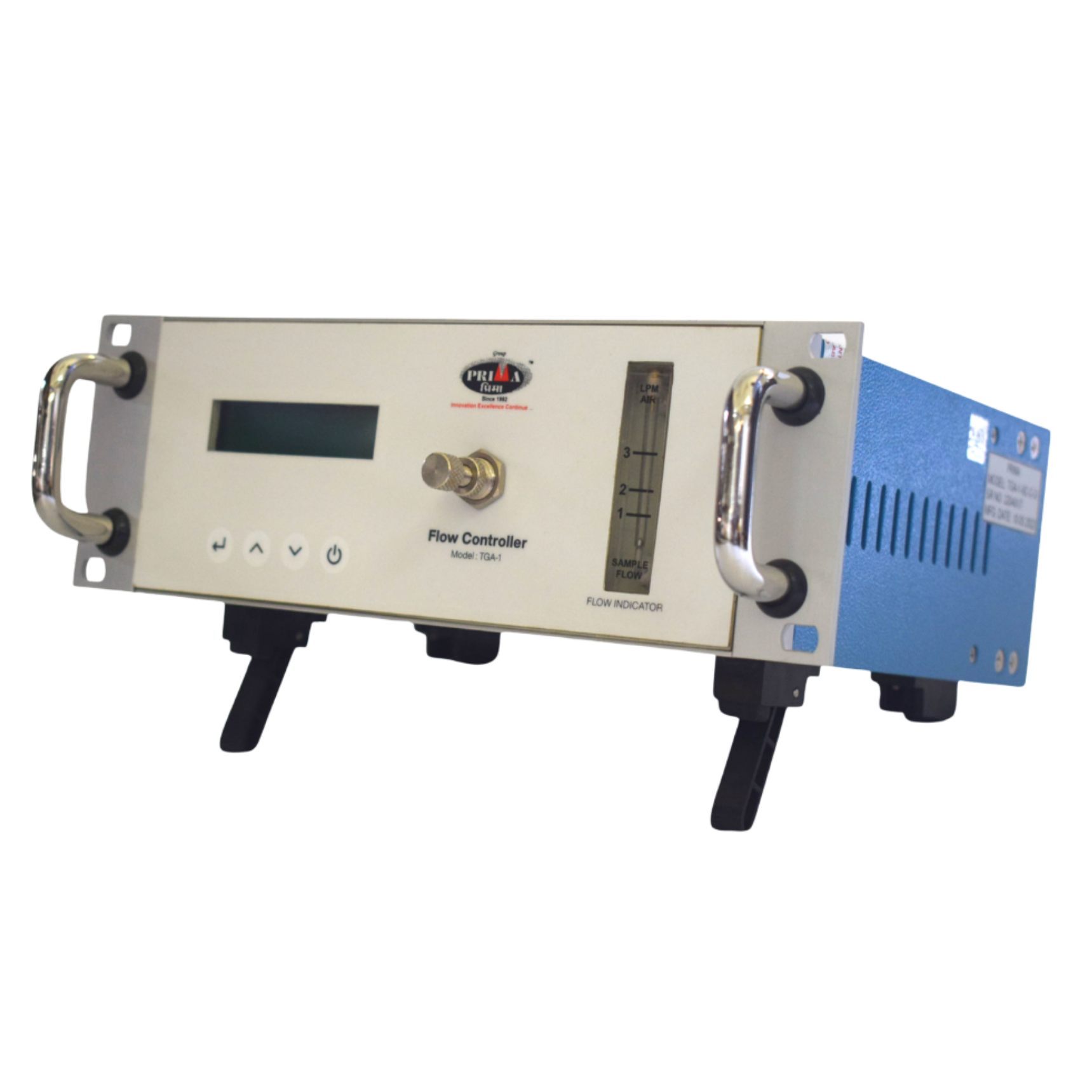

TGA-1

The PRIMA TGA-1 Toxic Gas Analyzer is a reliable instrument designed for the accurate measurement and monitoring of toxic gases in industrial and research applications.

It features audio-visual alarms, relay outputs, and digital communication options (4–20 mA / RS485 MODBUS) for seamless integration with control systems.

A built-in pump with flow indicator ensures stable sampling, while the unit can operate on 230 VAC or a rechargeable battery for flexible use. Compact, portable, and user-friendly, the TGA-1 is ideal for process control, quality assurance, area surveillance, and worker safety monitoring.

Features...

One alarm audible & visual. User can Set Alarm with a setpoint view.

Alarm relay SPDT with NO, C, and NC for online models.

Power 180~230 VAC OR Rechargeable battery option available (to be specified in the order).

Portable models are offered with the Inbuild pump & flow indicator option to draw sample gas.

Easy accessible Key Function: Escape, Enter, Up, Down.

4-20 mA & RS485 MODBUS for On-line models.

Technical Specifications...

Technology

Electrochemical/NDIR/PID/Pallister

Data Storage

In-built 100 readings (in auto sample mode)

Recorder O/P

RS485 MODBUS RTU

power

230 V AC, 50Hz, Single phase, 5 Amps, Stabilized. Optional: rechargeable battery

Accuracy

+ 1% FS at constant temperature

Size

225 x 200 x 120 mm

weight

1.5 Kg

Display

Display 16 x 2 LCD with Back Light

Downloading

4-20 mA Recorder Output

Data Output

USB(Optional)

Working temperature

0-50°C

alarms

Visual & audible, settable range. Low battery alarm also with Relay (SPDT) Output

flow indicator

0 – 2 LPM

Response Time

3 to 15 Sec < T90 at 20~80 %RH

Parameters...


Parameter Measurement	Range	Resolution
O2	0-25 % 0-100%	0.1%
CO	0-1000 ppm	1 ppm
SO2	0-20 ppm 0-1999 ppm	1 ppm
NO	0-100 ppm	1 ppm
NO2	0-50 ppm	1 ppm
CO2	0–5/20/50% 0-100 ppm	0.1 % 0.01 ppm
O3	0-1 ppm	0.01 ppm
NH3	0-100 ppm	1 ppm
H2S	0-100 ppm	0.1 ppm
HCL	0-30 ppm	1 ppm
ETO	0-100 ppm 500 ppm	1 ppm
CL2	0-50 ppm	0.1 ppm
COCL2	0-1 ppm	0.01 ppm
HCN	0-30 ppm	1 ppm
H2	0-1999 ppm 0-2 %	1 ppm 10 ppm
PH3	0-1 ppm	0.01 ppm
VOC	0-100 ppm 0-1000 ppm	0.1 ppm 1 ppb
Combustible	0-100% LEL	1% LEL
